Far Infrared Ray Heating System

Product tags：

Overview

The performance required of a heater varies depending on the industry field or production process. INFRASTEIN provides heating and drying in low to mid temperature ranges, while INFRACERAM provides excellent heating in high temperature ranges. INFRAQUICK is capable of temperature rise and fall in a matter of seconds, with an expanded range of far-infrared heating. As professionals in the area of far-infrared heaters, we can propose a heating system with the heater that is best for the customer.

Low to mid temperature heater suitable for heating, drying, and similar processes "INFRASTEIN"

Features of INFRASTEIN

  • High emissivity
  • Uniform heating
  • High-precision heat control
  • Long lifetime
INFRASTEIN unit
INFRASTEIN unit
INFRASTEIN set
INFRASTEIN set
Item Performance value
Infrared wavelengths Principally 3 – 7 μm
Maximum heater control temp. 600℃*

Depending on the service environment and heater specifications, there are cases when temperature rise to the maximum temperature is not possible. Heater temperature indicates the temperature detected by a sensor inside the heater.

The world’s highest level of maximum temperature (900°C) from a ceramic heater "INFRACERAM"

Features of INFRACERAM

  • 900°C maximum temperature – the highest from a ceramic heater
  • Uniform heating
  • High-precision heat control
  • Long lifetime
INFRACERAM unit
INFRACERAM unit
Item Performance value
Infrared wavelengths Principally 2.5 – 7 μm
Maximum heater control temp. 900℃*(large system, 1,000 W)
800℃*(small system, 500 W)

Depending on the service environment and heater specifications, there are cases when temperature rise to the maximum temperature is not possible. Heater temperature indicates the temperature detected by a sensor inside the heater.

This heater overturns conventional thinking about far-infrared heating and reaches 600°C in just several tens of seconds. "INFRAQUICK"

Features of INFRAQUICK

  • Achieves rapid temperature rise and fall.
  • High emissivity
  • Optimal as a means of energy savings.
  • Includes functions for preventing fire and other trouble.
INFRAQUICK unit
INFRAQUICK unit
Item Performance value
Infrared wavelengths Principally 4 – 8 μm
Maximum heater control temp. 600℃*

Depending on the service environment and heater specifications, there are cases when temperature rise to the maximum temperature is not possible. Heater temperature indicates the temperature detected by a sensor inside the heater.

Comparing the features of each heater

Heater temp.
(max.)		 Heater size Heater temp.
rise speed		 Features Applications
(past uses)
INFRASTEIN 600℃* 65W×250L
65W×125L		 5 – 15 min Long lifetime General coatings
Heating of resins, CFRP
INFRACERAM 900℃*
800℃*		 65W×250L
65W×125L		 5 – 15 min Highest maximum temp. in the industry Heat-resistant films
Glass
INFRAQUICK 600℃* 125W×125L 40 – 50 sec Heating in just seconds Localized heating
Heating of resins

Depending on the service environment and heater specifications, there are cases when temperature rise to the maximum temperature is not possible. Heater temperature indicates the temperature detected by a sensor inside the heater.

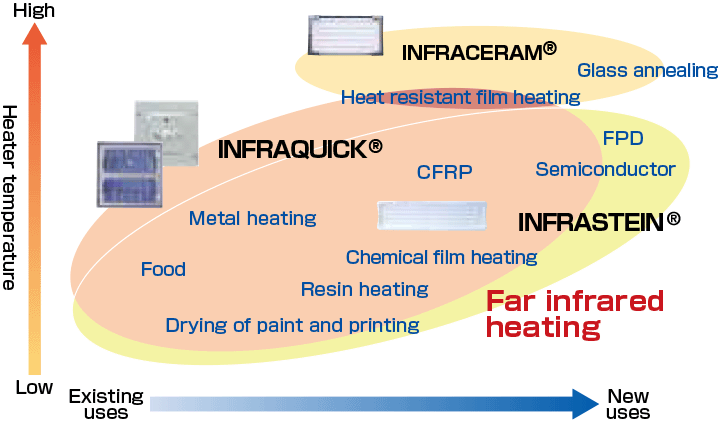

Areas where INFRASTEIN, INFRACERAM, and INFRAQUICK are used

Illustration of areas where INFRASTEIN, INFRACERAM, and INFRAQUICK are used
